using ClusterDepth
using Random
using CairoMakie
using UnfoldSim
using StatsBase
using Distributions
using DataFrames
using Unfold
using UnfoldMakie

How to use clusterDepth multiple comparison correction

Info

This tutorial focuses on single-channel data. For multichannel data, see the tutorial "Further EEG Example".

Let's setup an EEG simulation using UnfoldSim.jl. We simulate a simple 1x2 design with 20 subjects, each with 40 trials

n_subjects = 20
design = MultiSubjectDesign(n_subjects=n_subjects, n_items=40, items_between=Dict(:condition => ["car", "face"]))
first(generate_events(design), 5)
5×3 DataFrame
Rowsubjectitemcondition
StringStringString
1S01I01car
2S01I02face
3S01I03car
4S01I04face
5S01I05car

next we define a ground-truth signal + relation to events/design with Wilkinson Formulas let's simulate a P100, a N170 and a P300 - but an effect only on the N170

p1 = MixedModelComponent(;
    basis=UnfoldSim.p100(; sfreq=250),
    formula=@formula(0 ~ 1 + (1 | subject)),
    β=[1.0],
    σs=Dict(:subject => [1]),
);
n170 = MixedModelComponent(;
    basis=UnfoldSim.n170(; sfreq=250),
    formula=@formula(0 ~ 1 + condition + (1 + condition | subject)),
    β=[1.0, -0.5], # condition effect - faces are more negative than cars
    σs=Dict(:subject => [1, 0.2]), # random slope yes please!
);

p300 = MixedModelComponent(;
    basis=UnfoldSim.p300(; sfreq=250),
    formula=@formula(0 ~ 1 + condition + (1 + condition | subject)),
    β=[1.0, 0], ## no p300 condition effect
    σs=Dict(:subject => [1, 1.0]), # but a random slope for condition
);

# Start the simulation
data, events = simulate(MersenneTwister(1), design, [p1, n170, p300], UniformOnset(; offset=500, width=100), RedNoise(noiselevel=1); return_epoched=true)
times = range(0, stop=size(data, 1) / 250, length=size(data, 1));

let's fit an Unfold Model for each subject

Note

In principle, we do not need Unfold here - we could simply calculate (subjectwise) means of the conditions, and their time-resolved difference. Using Unfold.jl here simply generalizes it to more complex design, e.g. with continuous predictors etc.

models = map((d, ev) -> (fit(UnfoldModel, @formula(0 ~ 1 + condition), DataFrame(ev), d, times), ev.subject[1]),
    eachslice(data; dims=3),
    groupby(events, :subject))
20-element Vector{Tuple{Unfold.UnfoldLinearModel, String}}:
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S01")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S02")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S03")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S04")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S05")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S06")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S07")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S08")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S09")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S10")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S11")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S12")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S13")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S14")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S15")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S16")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S17")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S18")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S19")
 (Unfold-Type: Unfold.UnfoldLinearModel

formula: Dict{DataType, Tuple{StatsModels.FormulaTerm{StatsModels.ConstantTerm{Int64}, Tuple{StatsModels.ConstantTerm{Int64}, StatsModels.Term}}, StepRangeLen{Float64, Base.TwicePrecision{Float64}, Base.TwicePrecision{Float64}, Int64}}}(Any => (0 ~ 1 + condition, 0.0:0.004035714285714286:0.452))
Useful functions:

    design(uf) 		(returns Dict of event => (formula,times/basis))

    designmatrix(uf) 	(returns DesignMatrix with events)

    modelfit(uf) 		(returns modelfit object)

    coeftable(uf) 		(returns tidy result dataframe)

, "S20")

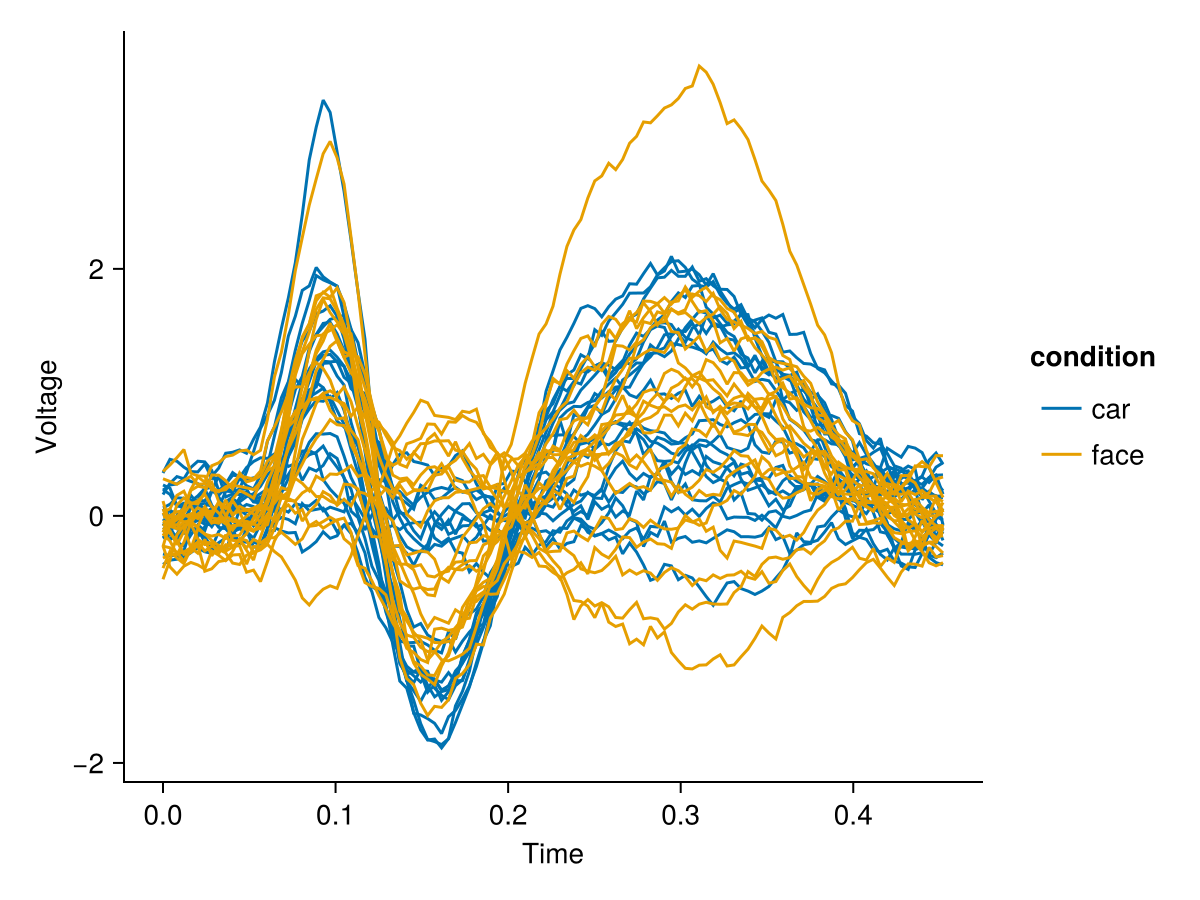

now we can inspect the data easily, and extract the face-effect

function add_subject!(df, s)
    df[!, :subject] .= s
    return df
end
allEffects = map((x) -> (effects(Dict(:condition => ["car", "face"]), x[1]), x[2]) |> (x) -> add_subject!(x[1], x[2]), models) |> e -> reduce(vcat, e)

plot_erp(allEffects; mapping=(color=:condition, group=:subject))
Example block output

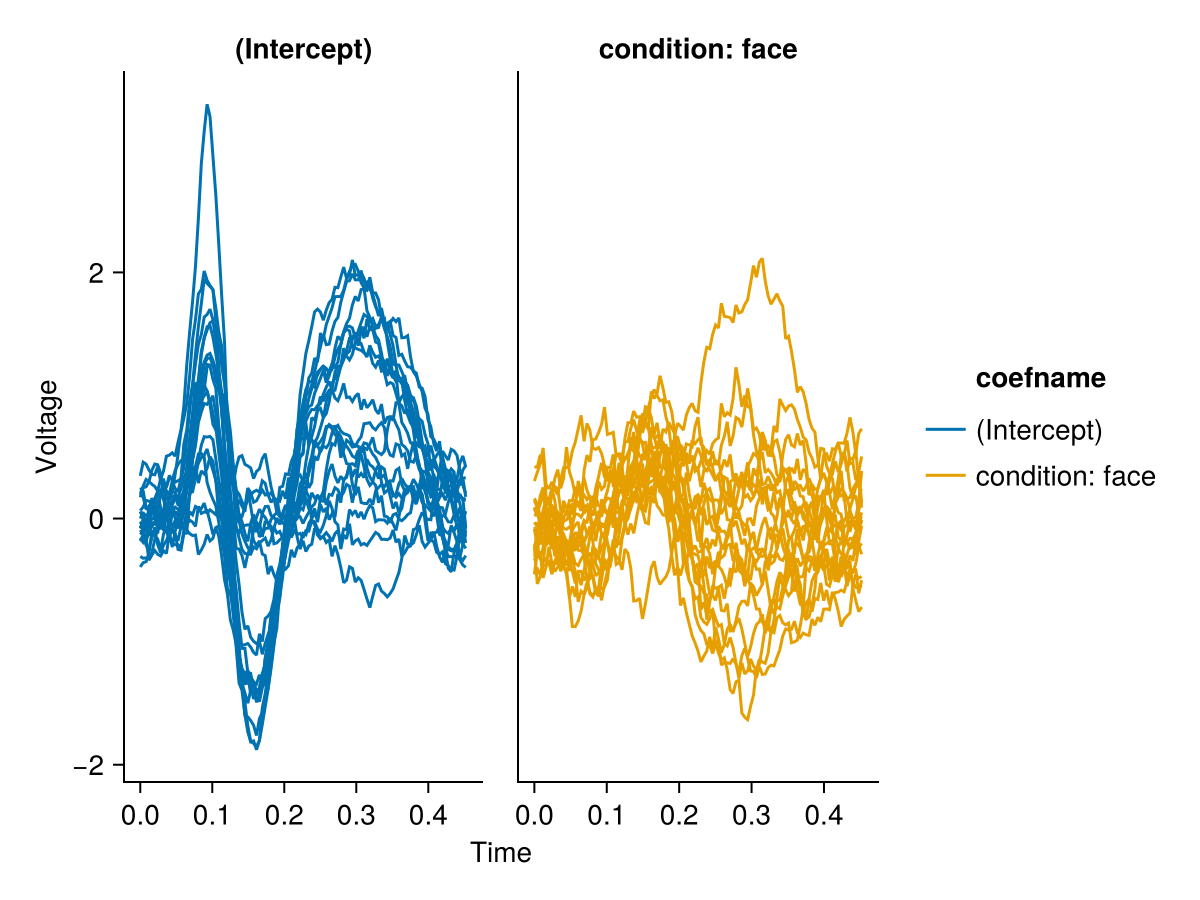

extract the face-coefficient from the linear model

allCoefs = map(m -> (coeftable(m[1]), m[2]) |> (x) -> add_subject!(x[1], x[2]), models) |> e -> reduce(vcat, e)
plot_erp(allCoefs; mapping=(group=:subject, col=:coefname))
Example block output

let's unstack the tidy-coef table into a matrix and put it to clusterdepth for clusterpermutation testing

faceCoefs = allCoefs |> x -> subset(x, :coefname => x -> x .== "condition: face")
erpMatrix = unstack(faceCoefs, :subject, :time, :estimate) |> x -> Matrix(x[:, 2:end])' |> collect
summary(erpMatrix)
"113×20 Matrix{Union{Missing, Float64}}"

Clusterdepth

pvals = clusterdepth(erpMatrix; τ=quantile(TDist(n_subjects - 1), 0.95), nperm=5000);

well - that was fast, less than a second for a cluster permutation test. not bad at all!

Plotting

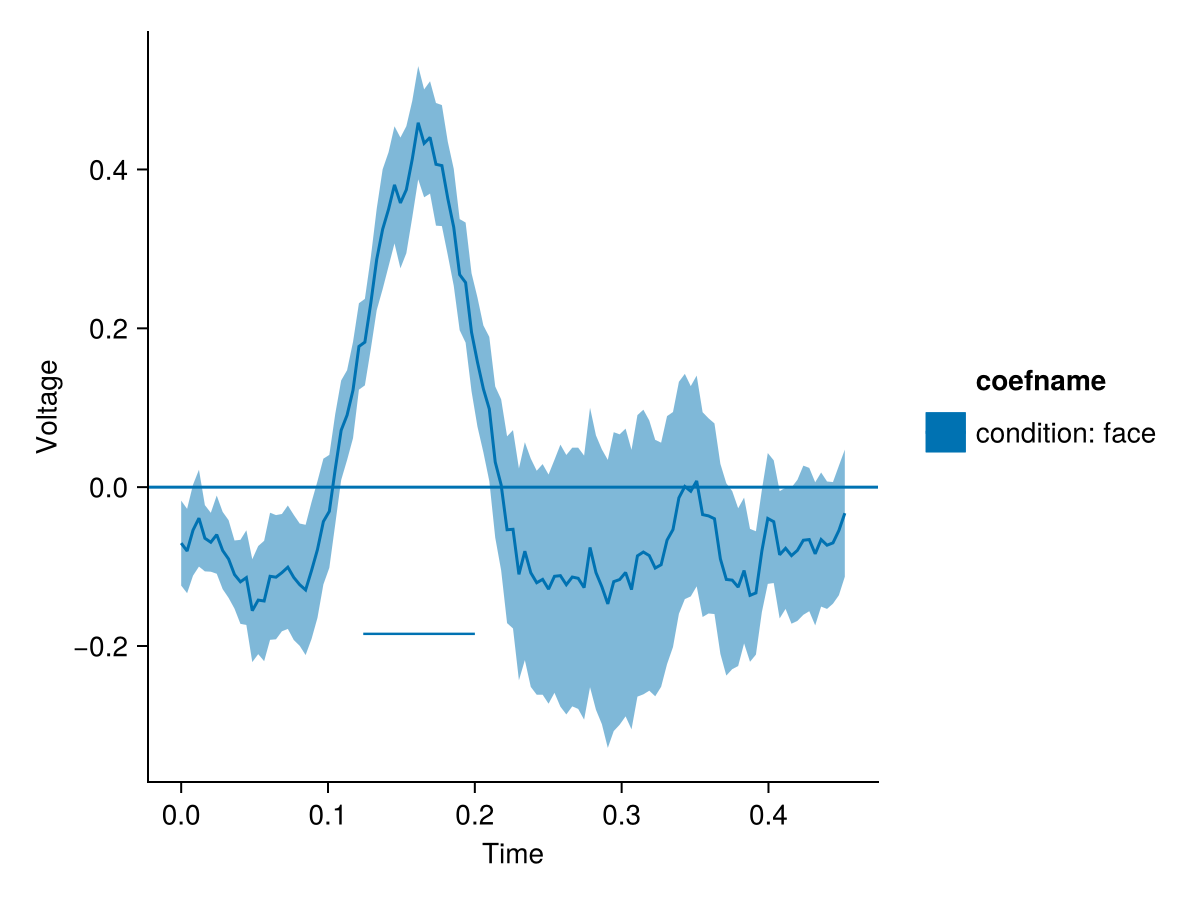

Some plotting, and we add the identified cluster

first calculate the ERP

faceERP = groupby(faceCoefs, [:time, :coefname]) |>
          x -> combine(x, :estimate => mean => :estimate,
    :estimate => std => :stderror);

put the pvalues into a nicer format

pvalDF = ClusterDepth.cluster(pvals .<= 0.05) |> x -> DataFrame(:from => x[1] ./ 250, :to => (x[1] .+ x[2]) ./ 250, :coefname => "condition: face")
plot_erp(faceERP; stderror=true, pvalue=pvalDF)
Example block output

Looks good to me! We identified the cluster :-)

old unused code to use extra=(;pvalue=pvalDF) in the plotting function, but didnt work.
